C&I Hybrid Inverter
CE0030-0500
- 30-500kW Rated Power
- Integrated design, easy to integrate
- Various working modes can be set flexibly
- Redundancy design for important functions
- PV controller modular design, easy to expand
- Perfect protection function for inverter and battery
- Built-in isolation transformer for high load adaptability
- Operate with EMS to monitor system status in real time
- Support battery capacity and discharge time prediction
- Built-in maintenance bypass switch, improve system availability
- Smooth switching between on and off grid, uninterrupted supply of load
- Support simultaneous access of load, battery, power grid, diesel and PV
Why choose us?
We have rich service experience and research and development technology.
Stable supply chain
We have our own battery pack and inverter factories with more than 1.5GWh of Li-FePO4 battery packs and an annual production capacity of 80,000 inverters.
Local Warehouse
We will set up warehouses in mainstream markets to cover the surrounding area of 200-300 kilometers.
Accept Customization
We support OEM and ODM.
Excellent After-sales Service
We have more than 20 people after-sales team, which can reply any of your questions in 7*24 hours.
Strong R&D Team
We have a R&D team of more than 30 people, and our engineers have more than 10 years of R&D experience in top companies in the industry.
Competitive Payment Terms
We support a variety of payment methods, such as T/T, L/C, Alibaba Trade Guarantee Payment, paypal, alipay and so on.
Technical Data
| Model | CE0030 | CE0050 | CE0100 | CE0150 | CE0250 | CE0500 |
| AC(On-Grid) | ||||||
| Max Output Power (kVA) | 33 | 55 | 110 | 165 | 275 | 550 |
| Rated Power (kW) | 30 | 50 | 100 | 150 | 250 | 500 |
| Rated Voltage (V) | 400 | |||||
| Rated Current (A) | 43 | 72 | 144 | 216 | 361 | 722 |
| Voltage Range (V) | 320~460 | |||||
| Rated Frequency (Hz) | 50/60 | |||||
| Frequency Range (Hz) | 45~55/55~65 | |||||
| THDi | <3% | |||||
| Power Factor | 1lagging~1leading | |||||
| AC Connection | 3W+N+PE | |||||
| Transformer Ratio | 100/400 | 200/400 | 270/400 | 270/400 | 270/400 | 315/400 |
| AC(Off Grid) | ||||||
| Max Output Power (kVA) | 33 | 55 | 110 | 165 | 275 | 550 |
| Rated Power (kW) | 30 | 50 | 100 | 150 | 250 | 500 |
| Rated Voltage (V) | 400 | |||||
| Rated Current (A) | 43 | 72 | 144 | 216 | 361 | 722 |
| THDu | ≤1% linear, or≤5% nonlinear | |||||
| Rated Frequency (Hz) | 50/60 | |||||
| Overload Capacity | 110% long-term | |||||
| PV Input | ||||||
| Max.PV Input Voltage (V) | 1,000 | |||||
| Max.PV Power (kW) | 60/120 | 60/120 | 120/180/240 | 120/180/240 | 300/360 | 600/660/720 |
| MPPT Voltage Range (V) | 250-850 | |||||
| MPPT Voltage Range@full load (V) | 450-850 | |||||
| Battery | ||||||
| Battery Voltage Range (V) | 250~850 | 320~850 | 420~850 | 420~850 | 420~850 | 500~850 |
| Max. Charging Power (kW) | 60/120 | 60/120 | 120/180/240 | 120/180/240 | 300/360 | 600/660/720 |
| General data | ||||||
| Dimension W ×D ×H (mm) | 800 ×800 ×1,900 | 800 ×800 ×1,900 | 1,200 ×800 ×2,050 | 1,200 ×800 ×2,050 | (600×720×2,050)×1+ 1,200×800×2,050 | (600×720×2,050)×2+ 1,600×1,050×2,050 |
| Weight (kg) | 620/650 | 720/750 | 1,120/1,150/1,180 | 1,250/1,280/1,310 | 1,980/2,010 | 3,265/3,295/3,325 |
| Operation Temperature(°C) | -30~ 55 | |||||
| Relative Humidity | 0 ~95% non-condensing | |||||
| Ingress Protection | IP20 | |||||
| Noise Emission (dB) | <70 | |||||
| Altitude(m) | 5,000(>3,000 Derating) | |||||
| Cooling | Air Cooling | |||||
| Display and Communication | ||||||
| Display | LCD touch-screen | |||||
| BMS Communication | RS485, CAN | |||||
| EMS Communication | RS485, TCP/IP | |||||
| Certificates | EN62109-1/-2, EN62477-1, EN61000-6-2, EN61000-6-4, South Africa NRS097-2-1:2017, Pakistan&India IEC61727, IEC62116, IEC61683 | |||||

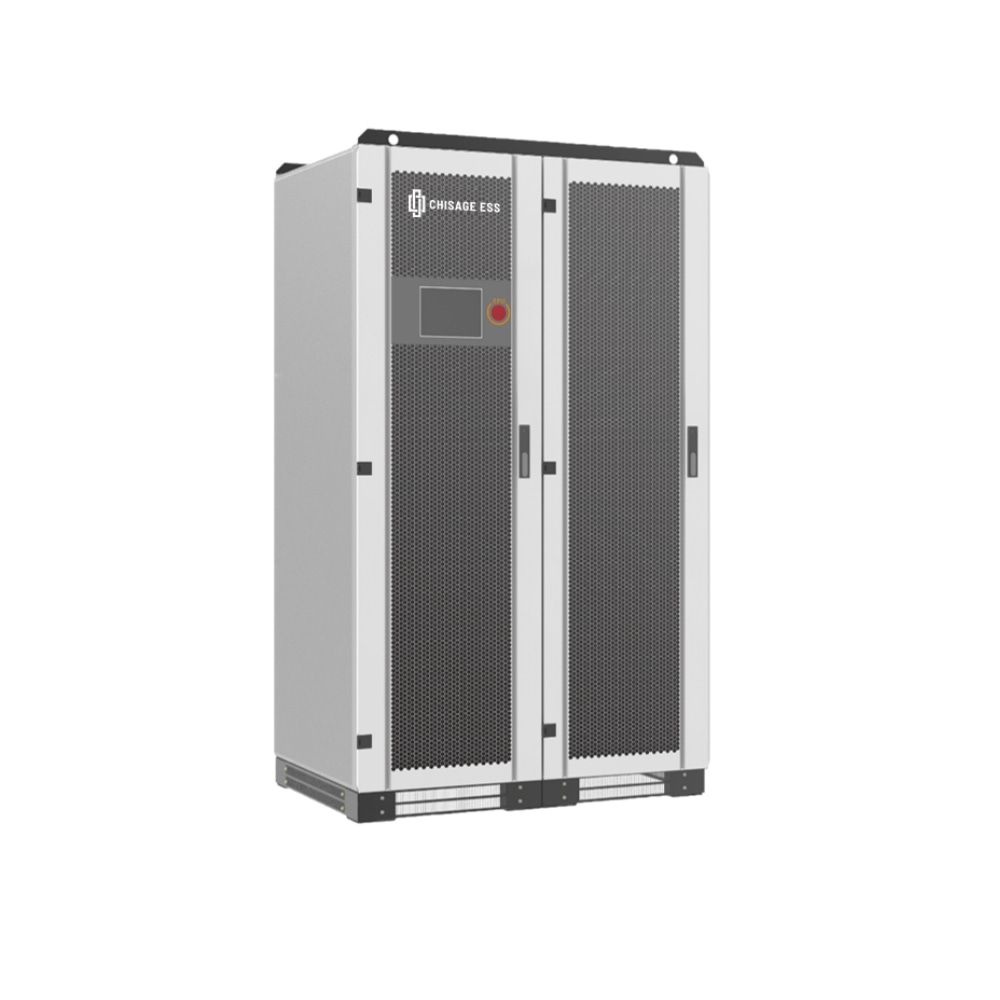

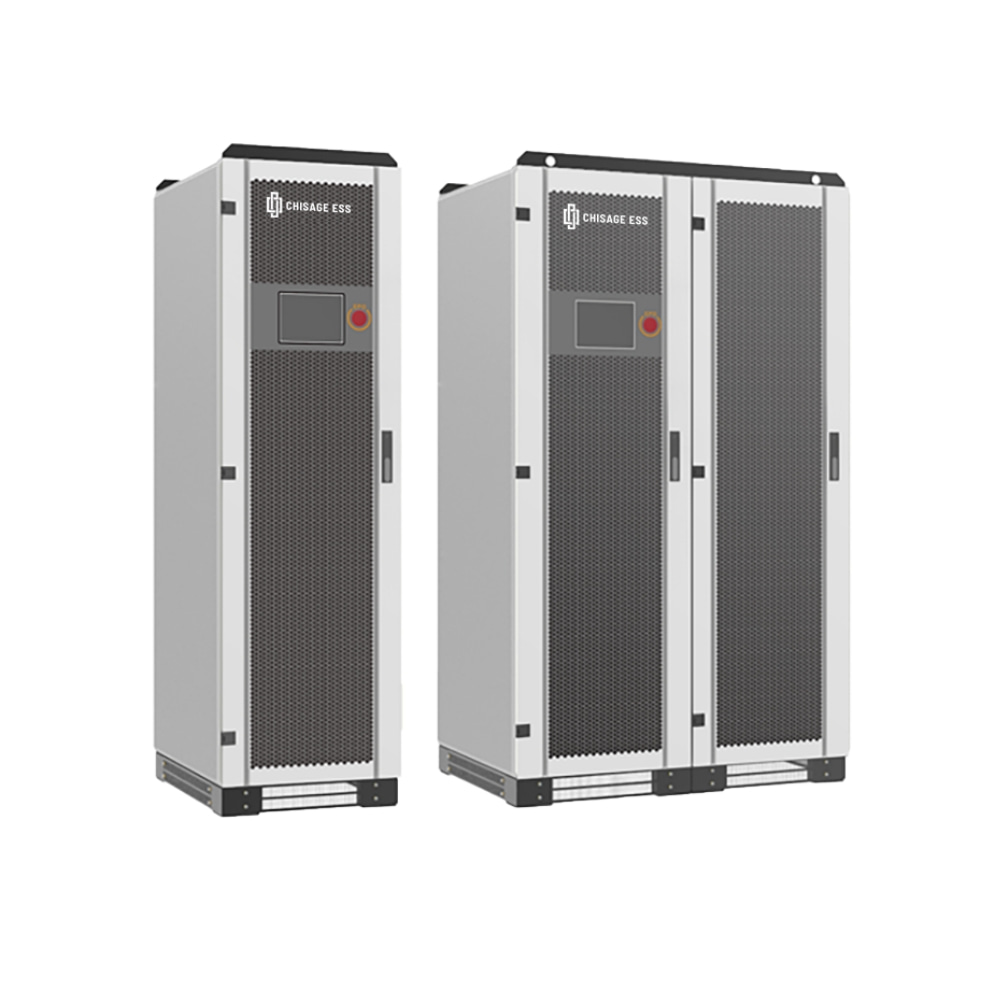

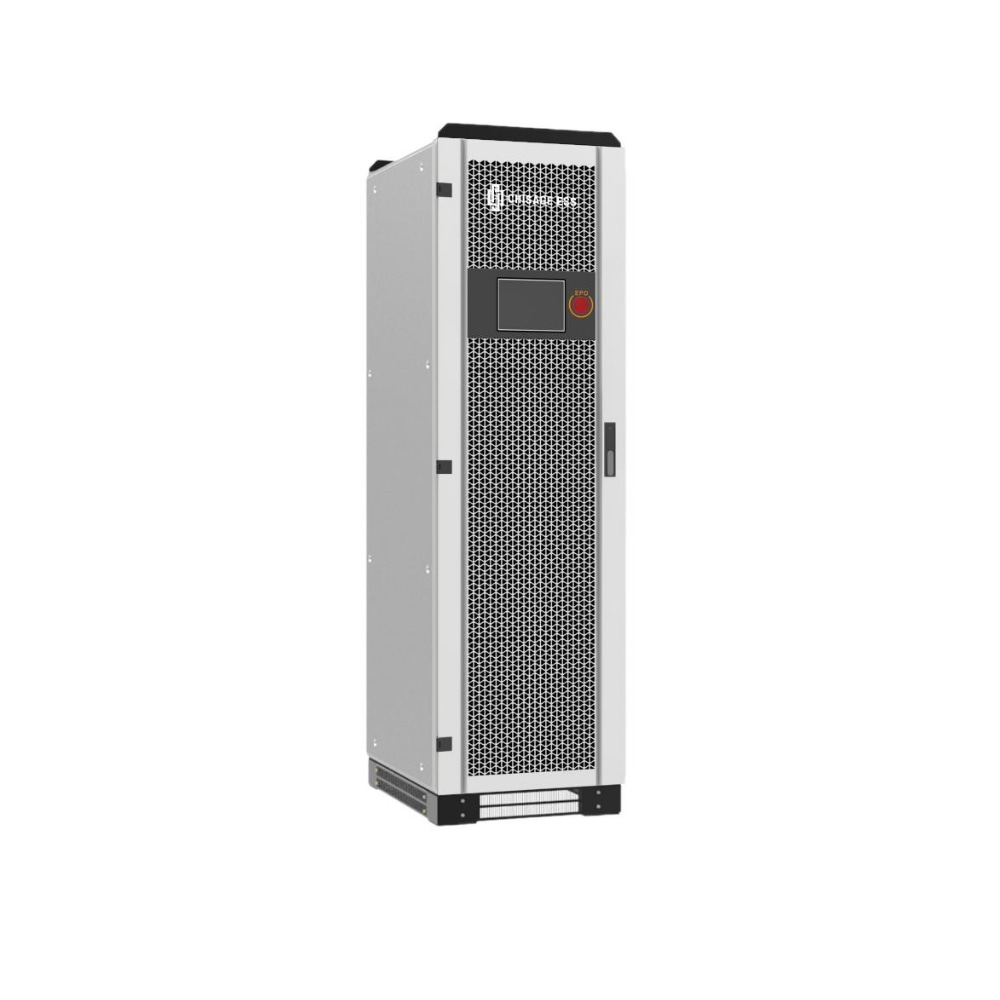

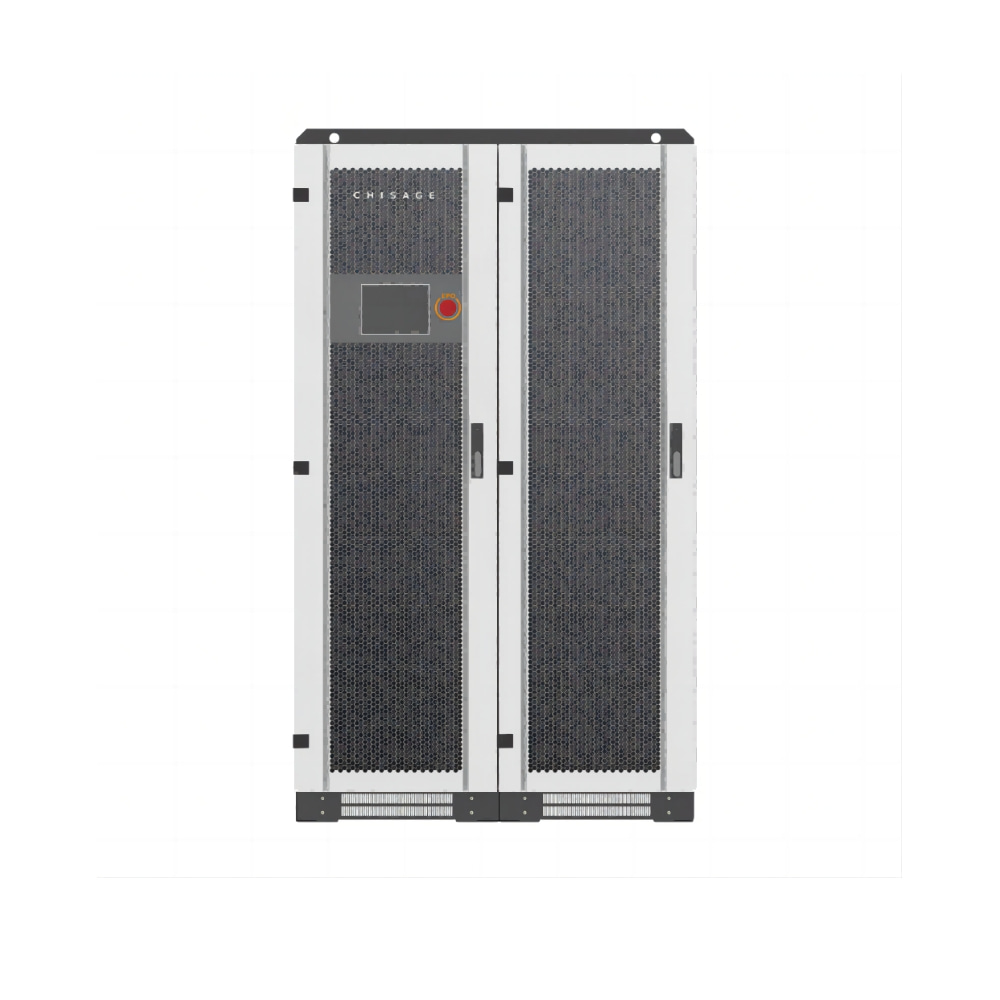

Our gallery
Product Details
Different energy meet the vast majority of scenarios. We provide on-site installation and usage guidance services, making it easy for you to buy and use.
Product Introduction
If you have any questions during the browsing process, please feel free to contact us and communicate with us at any time.

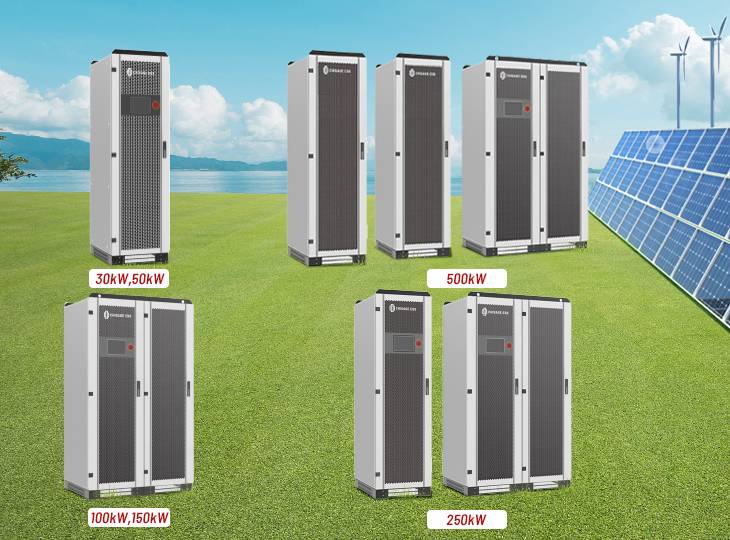

PV Controller Modular Design, Easy to Expand
Designed with a modular structure, the PV controller can be easily expanded as needed, providing flexibility and customizability.
Built-in Isolation Transformer for High Load Adaptability
Equipped with a built-in isolation transformer, it can adapt to various high-load environments and provide more stable and reliable power output.
Unleash the potential for unlimited possibilities!
Click to learn more about us and move towards a new era of energy together!
Application Cases
We have served thousands of customers and have rich service experience.
South Africa Installation Case
12kW Solar Energy Storage System in South Africa
Guatemala Installation Case
12kW Solar Energy Storage System in Lebanon
What Our Customers Have to Say
Real feedback from users can better reflect the professionalism of our products.
FAQ
Most frequent questions and answers
CHISAGE ESS supports a variety of payment methods, such as T/T, L/C, Alibaba Trade Guarantee Payment, paypal, alipay and others. If we enter into strategic cooperation, we can communicate with you about payment methods such as DP.
CHISAGE ESS is a factory 50 kilometers away from Ningbo port, which is very convenient for loading and shipping, and saves a lot of transportation cost. We have a R&D and engineering team of more than 30 people for energy storage systems and solar inverter technology. Now we have over 1.5GWh manufacturing capacity for lithium iron phosphate battery packs and 1GW for inverters.
We purchase Haichen cells which is the Top brand in China, and assemble them in our workshop.
CHISAGE ESS welcomes you to test our quality by sample. Samples will be prepared and sent out within 7 working days after the specification is confirmed.
