Grid Tie Inverter


  • 75-110kW Rated Output Power
  • AFCI optional
  • IP66 protection degree
  • High converter efficiency
  • High PV string input current up to 20A
  • Low PV start-up voltage, generate power eariler
  • Support bluetooth communication, easier inverter parameter setting and monitoring
Why choose us?
We have rich service experience and research and development technology.

Stable supply chain

We have our own battery pack and inverter factories with more than 1.5GWh of Li-FePO4 battery packs and an annual production capacity of 80,000 inverters.

Local Warehouse

We will set up warehouses in mainstream markets to cover the surrounding area of 200-300 kilometers.

Accept Customization

We support OEM and ODM.

Excellent After-sales Service

We have more than 20 people after-sales team, which can reply any of your questions in 7*24 hours.

Strong R&D Team

We have a R&D team of more than 30 people, and our engineers have more than 10 years of R&D experience in top companies in the industry.

Competitive Payment Terms

We support a variety of payment methods, such as T/T, L/C, Alibaba Trade Guarantee Payment, paypal, alipay and so on.

Technical Data

Input (PV)
Recommended Max. PV Power (kWp)                                                                                                                             112.5120135150165
Max. Input Voltage (V)1,100
Start-up Input Voltage (V)50
MPPT Voltage Range (V)100~1,080
Number of MPPTs79
String Number per MPPT22
Max. MPPT Input Current (A)7×409×40
Max. MPPT Short Circuit Current (A)7×609×60
Rated Output Power (kW)758090100110
Max. Output Apparent Power (kVA)758090100110
Max. Output Active Power (kW)758090100110
Rated AC Voltage (V)220/380, 230/400, 240/415, 3L+N+PE
AC Voltage Range (V)310~520
Max. Output Current (A)108.7115.9130.4144.9159.4
Rated Grid Frequency (Hz)50/60
Grid Frequency Range (Hz)45~55/55~65
Power Factor>0.99, 0.8 leading~0.8 lagging
DC Current Injection<0.5%ln
Max. Efficiency98.6%
European Efficiency98.3%
Ground Fault MonitoringSupport
Output Over Voltage ProtectionSupport
Anti-islanding ProtectionSupport
Intergrated AFCIOptional
DC Reverse ProtectionSupport
Surge ArresterDC Type  Ⅱ/AC Type  Ⅲ
Ingress ProtectionIP66
CoolingSmart fans
Operating Temperature Range (°C)-25~+60 (>45 derating)
Relative Humidity Range0~100% (no condensing)
Max. Operating Altitude (m)3,000
Noise Emission (dB)<=40 dB(A)
Dimension (mm)1,020W ×696H ×300D
Weight (kg)85
DC ConnectorMC4/D4
CommunicationWiFi (2.4G), 4G, GPRS, Bluetooth, RS485
Safety StandardIEC 62109-1/-2, IEC 62477-1/-2
EMC StandardIEC 61000-1/-2/-3/-4
Grid CodeAS4777.2, EN50549-1, G98, G99, ABNT NBR16149, ABNT NBR16150, VDE4105, CEI0-21, RD1699

Our gallery

Product Details

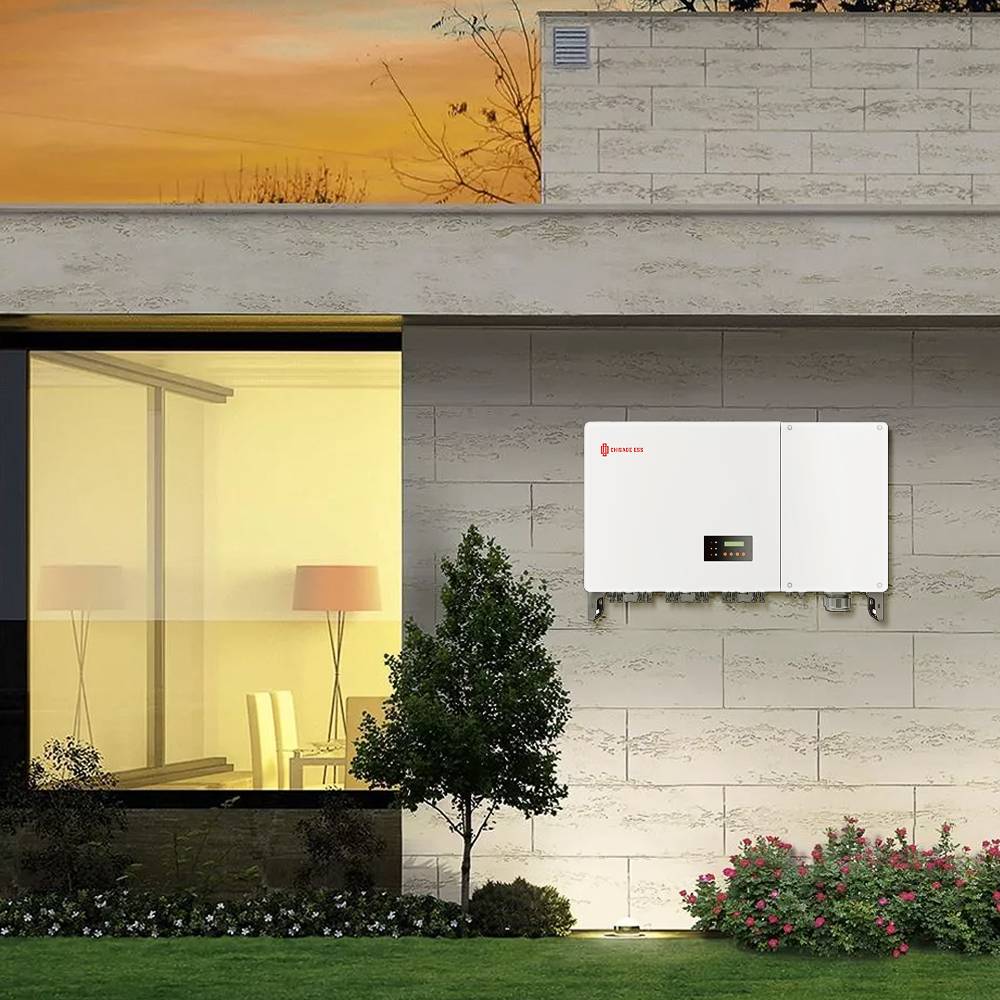

CHISAGE ESS CE-3P40-75KEG Grid Tie Inverter Scene Diagram 03(1)

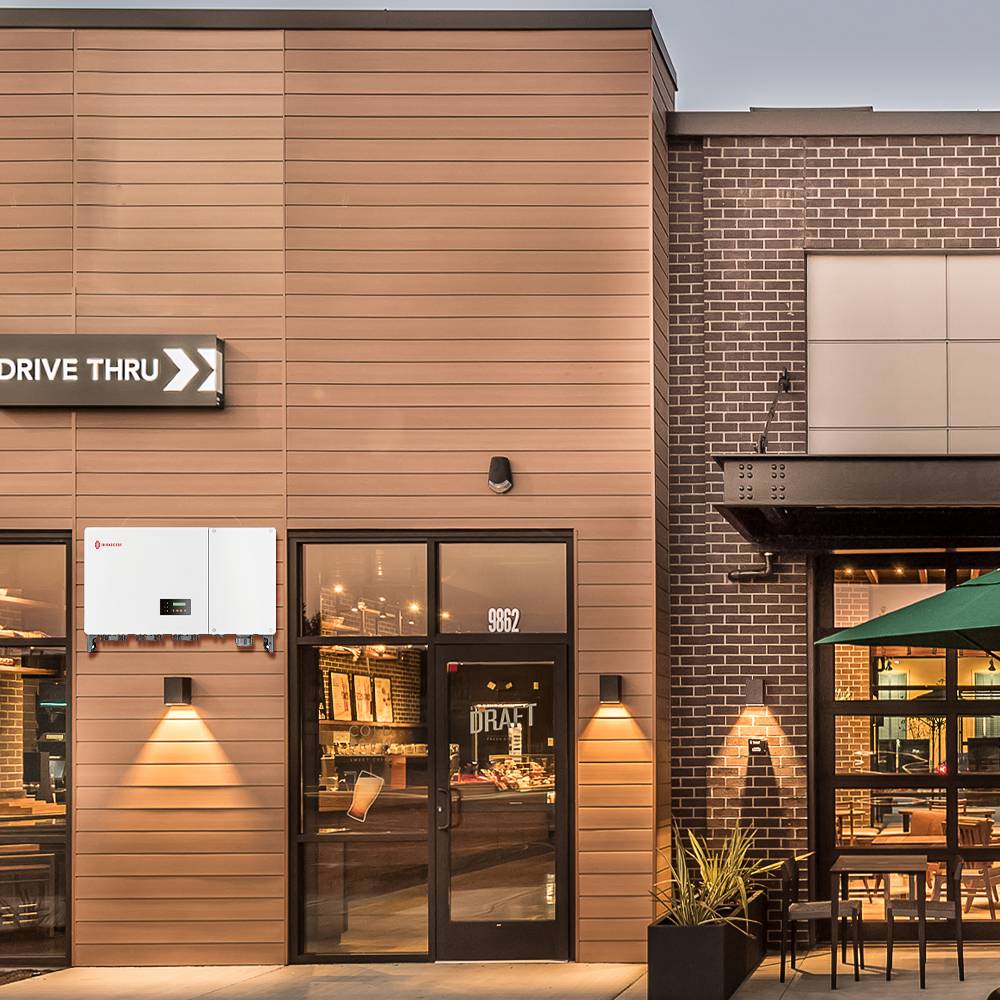

CHISAGE ESS CE-3P75-110KEG Grid Tie Inverter Scene Diagram 01(1)

Different energy meet the vast majority of scenarios. We provide on-site installation and usage guidance services, making it easy for you to buy and use.

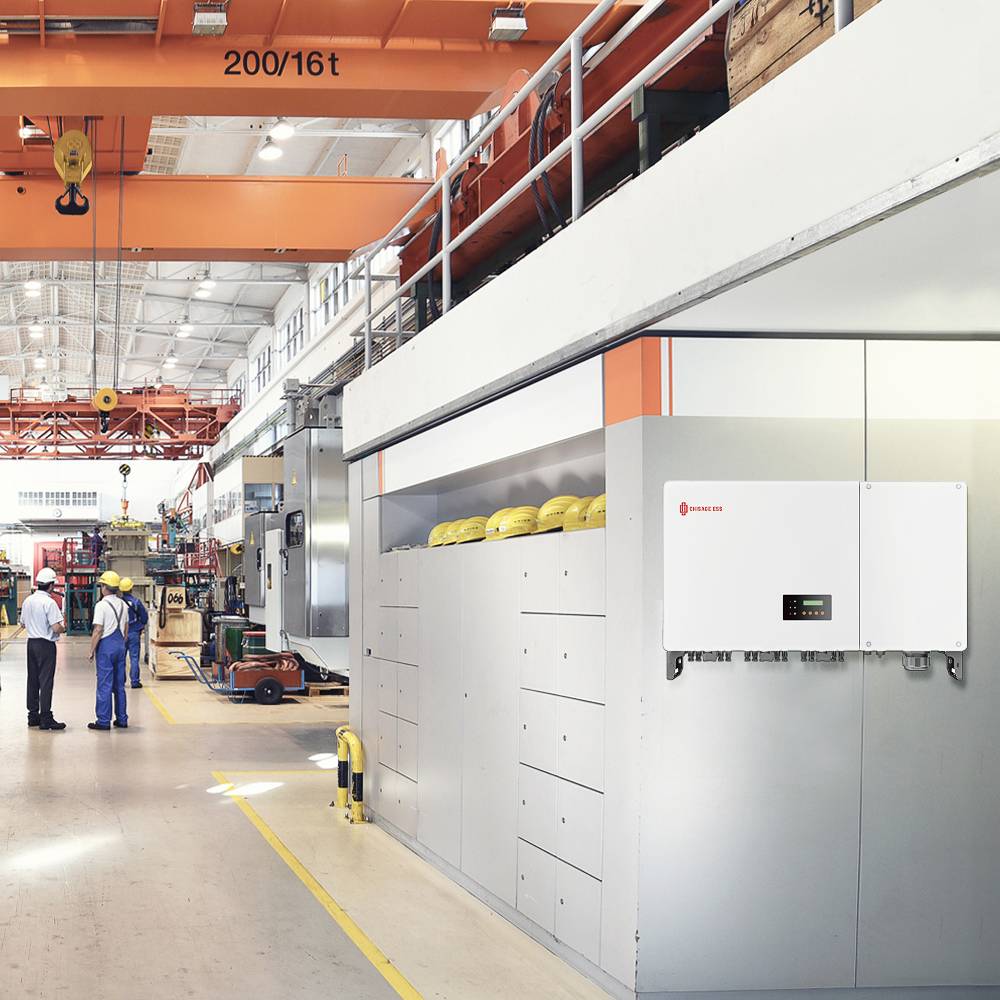

CHISAGE ESS CE-3P75-110KEG Grid Tie Inverter Scene Diagram 02(1)

Product Introduction

If you have any questions during the browsing process, please feel free to contact us and communicate with us at any time.

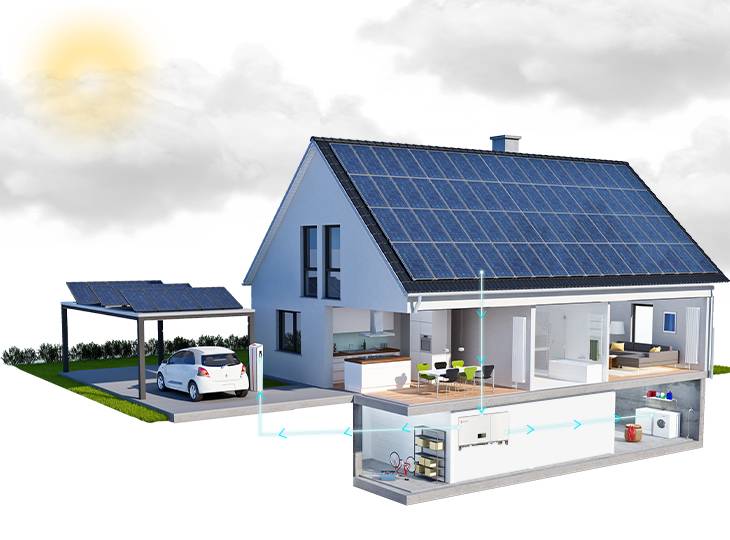

CHISAGE ESS CE-3P40-75KEG Grid Tie Inverter Feature Image 02(1)

Low PV Start-up Voltage, Generate Power Earlier

The grid-tie inverter has a low solar panel start-up voltage, which allows the system to start generating power under weak light conditions, generating power in advance and enhancing the reliability and performance of the system.

High PV Input Current Up to 20A

With a maximum input current of up to 20A, the grid-tie inverter is able to efficiently utilize the current generated by the solar panels and increase the energy conversion efficiency of the system.

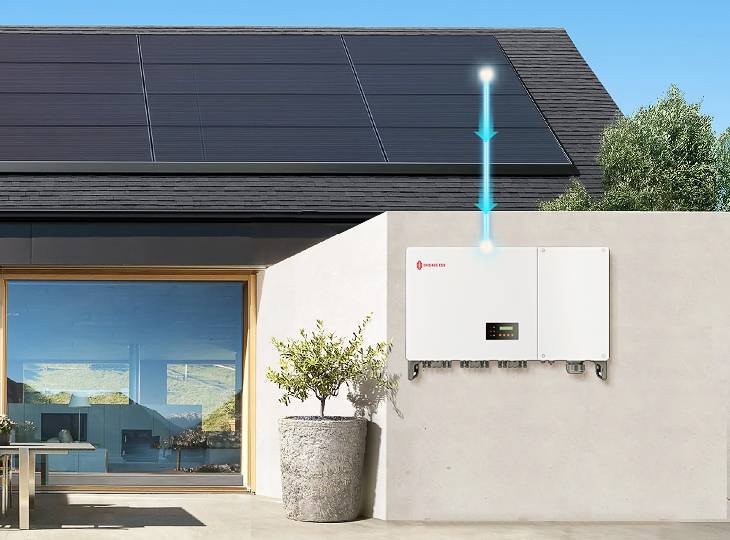

CHISAGE ESS CE-3P40-75KEG Grid Tie Inverter Feature Image 03(1)

Unleash the potential for unlimited possibilities!

Click to learn more about us and move towards a new era of energy together!

播放有关的视频 CHISAGE Group Introduction Video-2

Application Cases​

We have served thousands of customers and have rich service experience.
6kW Solar Energy Storage System in Europe

Europe Installation Case

6kW Solar Energy Storage System in Europe

China Installation Case

6kW Solar Energy Storage System in China

6kW Solar Energy Storage System in China

What Our Customers Have to Say

Real feedback from users can better reflect the professionalism of our products.


Most frequent questions and answers

CHISAGE ESS supports a variety of payment methods, such as T/T, L/C, Alibaba Trade Guarantee Payment, paypal, alipay and others. If we enter into strategic cooperation, we can communicate with you about payment methods such as DP.

CHISAGE ESS is a factory 50 kilometers away from Ningbo port, which is very convenient for loading and shipping, and saves a lot of transportation cost. We have a R&D and engineering team of more than 30 people for energy storage systems and solar inverter technology. Now we have over 1.5GWh manufacturing capacity for lithium iron phosphate battery packs and 1GW for inverters.

We purchase Haichen cells which is the Top brand in China, and assemble them in our workshop.

CHISAGE ESS welcomes you to test our quality by sample. Samples will be prepared and sent out within 7 working days after the specification is confirmed.
