Micro inverter
Ant-800G1
- 800W Rated Output Power
- Remote WiFi monitor
- IP67 protection degree
- Individual MPPT tracking
- Support parallel operation
- Cost-effective easy operatio
- High reliability and efficiency up to 96%
Why choose us?
We have rich service experience and research and development technology.
Stable supply chain
We have our own battery pack and inverter factories with more than 1.5GWh of Li-FePO4 battery packs and an annual production capacity of 80,000 inverters.
Local Warehouse
We will set up warehouses in mainstream markets to cover the surrounding area of 200-300 kilometers.
Accept Customization
We support OEM and ODM.
Excellent After-sales Service
We have more than 20 people after-sales team, which can reply any of your questions in 7*24 hours.
Strong R&D Team
We have a R&D team of more than 30 people, and our engineers have more than 10 years of R&D experience in top companies in the industry.
Competitive Payment Terms
We support a variety of payment methods, such as T/T, L/C, Alibaba Trade Guarantee Payment, paypal, alipay and so on.
Technical Data
| Model | Ant-800G1-US | Ant-800G1-EU |
| Input (DC) | ||
| Recommended Input Power (Wp) | 210 to 500W+ (2 Pieces) | |
| Max. Input DC Voltage (Vdc) | 60 | |
| MPPT Voltage Range (Vdc) | 25~55 | 20~55 |
| Start-up Voltage (Vdc) | 20 | |
| Max. Input Current (A) | 13.5×2 | |
| Max. DC Short Circuit Current (A) | 16.5×2 | |
| Output (AC) | ||
| Rated Output Power (W) | 800 | |
| Max. Output Current (A) | 4 | 3.5 |
| Nominal Grid Voltage (V) | 220 | 230 |
| Grid Voltage Range (V) | 184~253 | |
| Nominal Frequency (Hz) | 60 | 50 |
| Frequency Range (Hz) | 55~65 | 45~55 |
| Power Factor | 0.99(default),-0.95(lagging),+0.95(leading) | |
| Maximum Units per Branch | 4 | |
| Efficiency | ||
| CEC Weighted Efficiency | 95.50% | |
| Peak Inverter Efficiency | 96.00% | |
| MPPT Track Efficiency | >99.50% | |
| Night Time Power Consumption (mW) | <50 | |
| Mechanical Data | ||
| Operation Temperature Range (°C) | -40~65 | |
| Dimension (mm) | 260Wx225Hx32D | |
| Weight (kg) | 2.9 | |
| Cooling | Natural cooling | |
| Noise (dB) | <15 | |
| Protection Degree | IP67 | |
| General | ||
| Display | LED, APP | |
| Communication | Built-in Wifi | |
| Compliance | IEC 62109,IEC 61000,VDE4105 | |

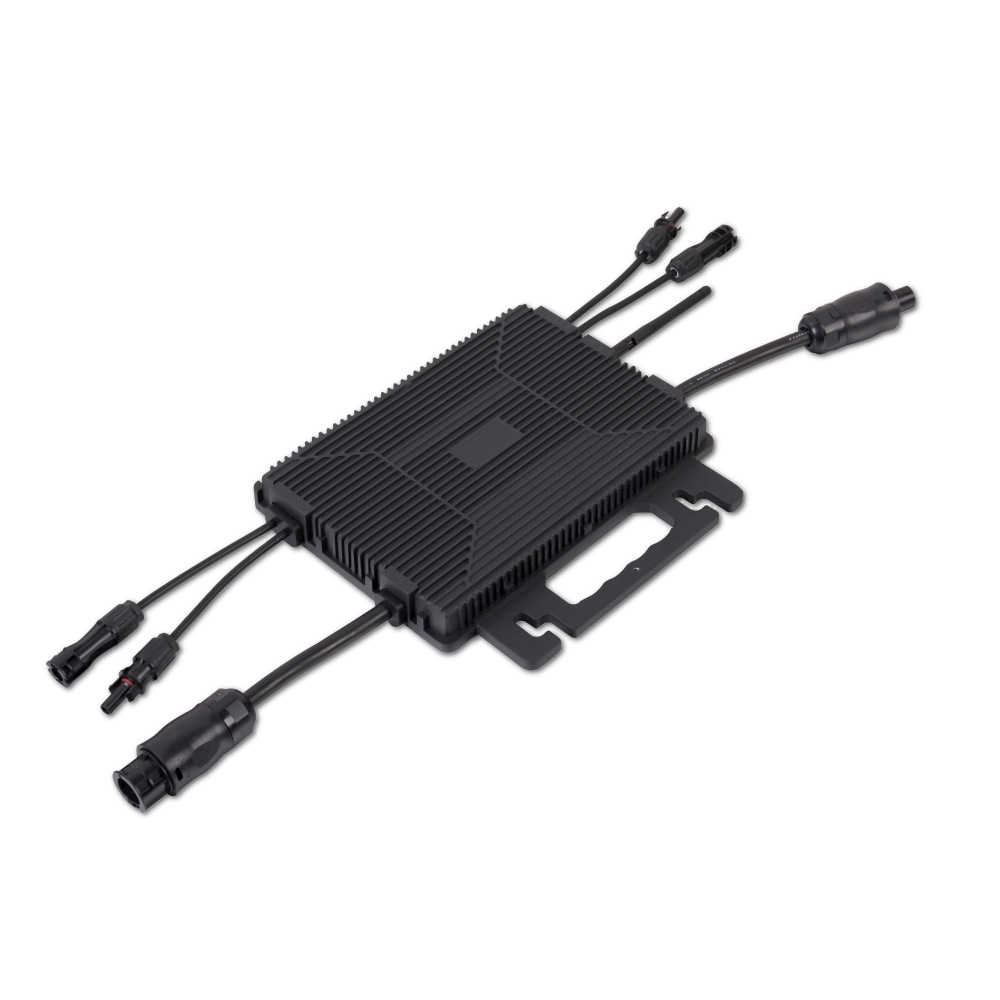

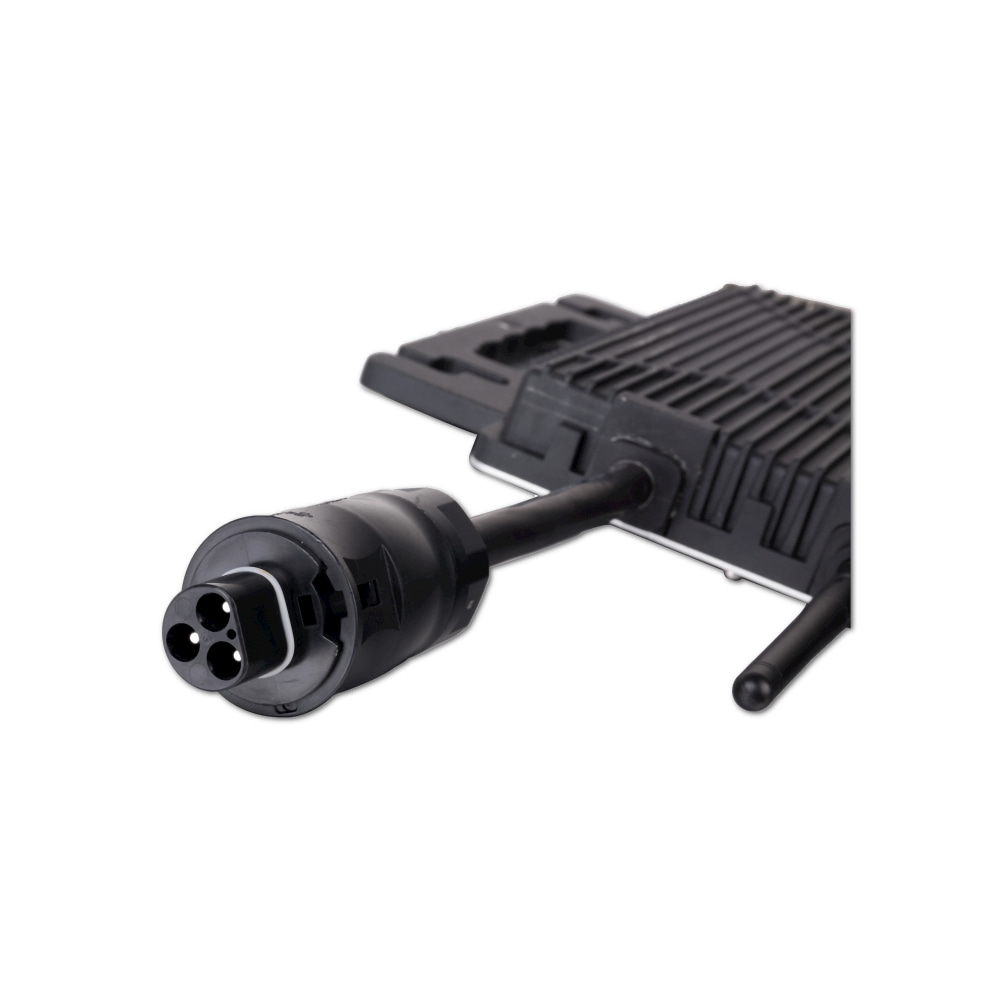

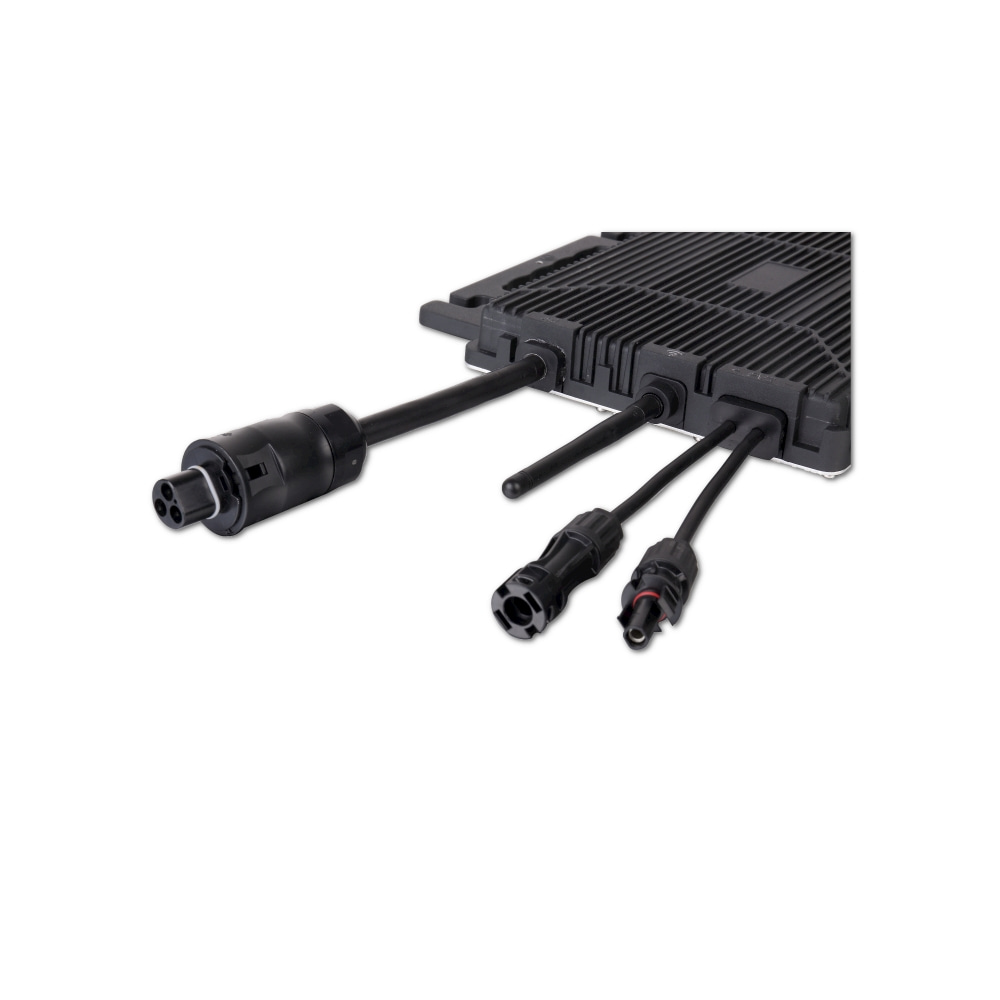

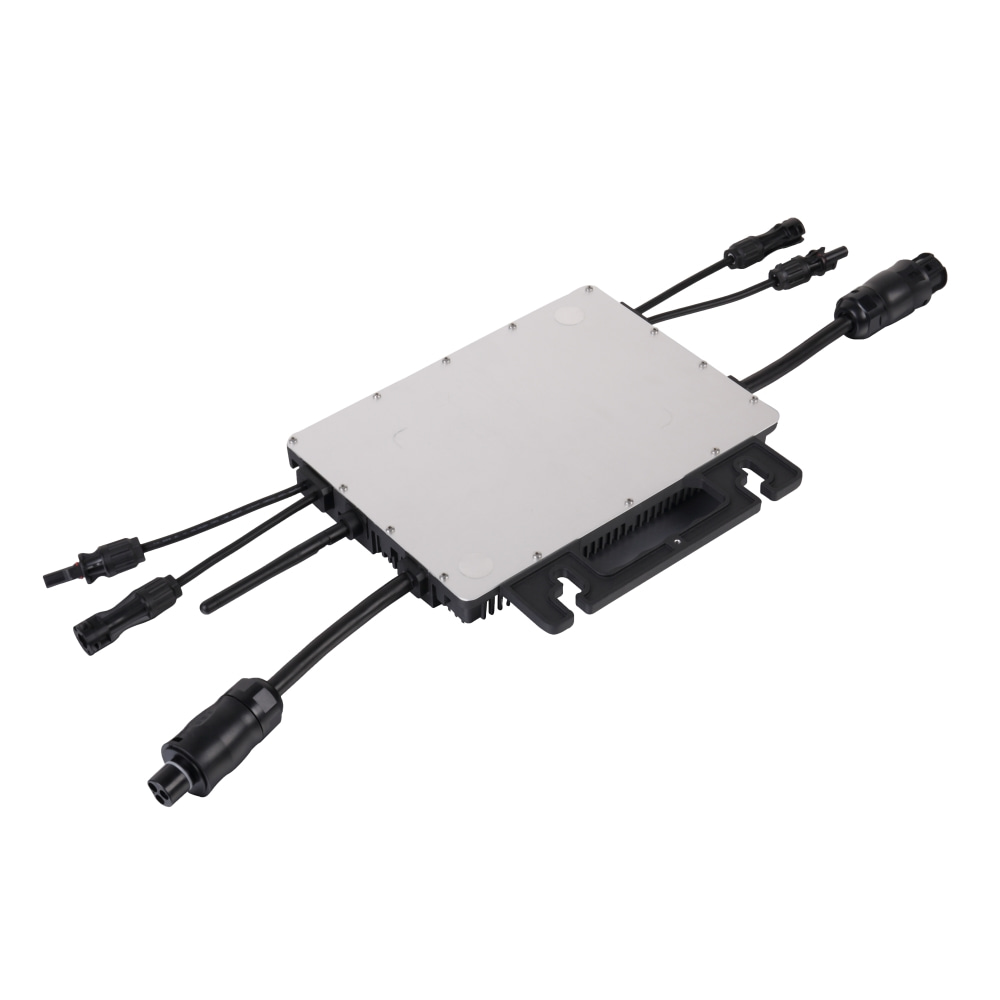

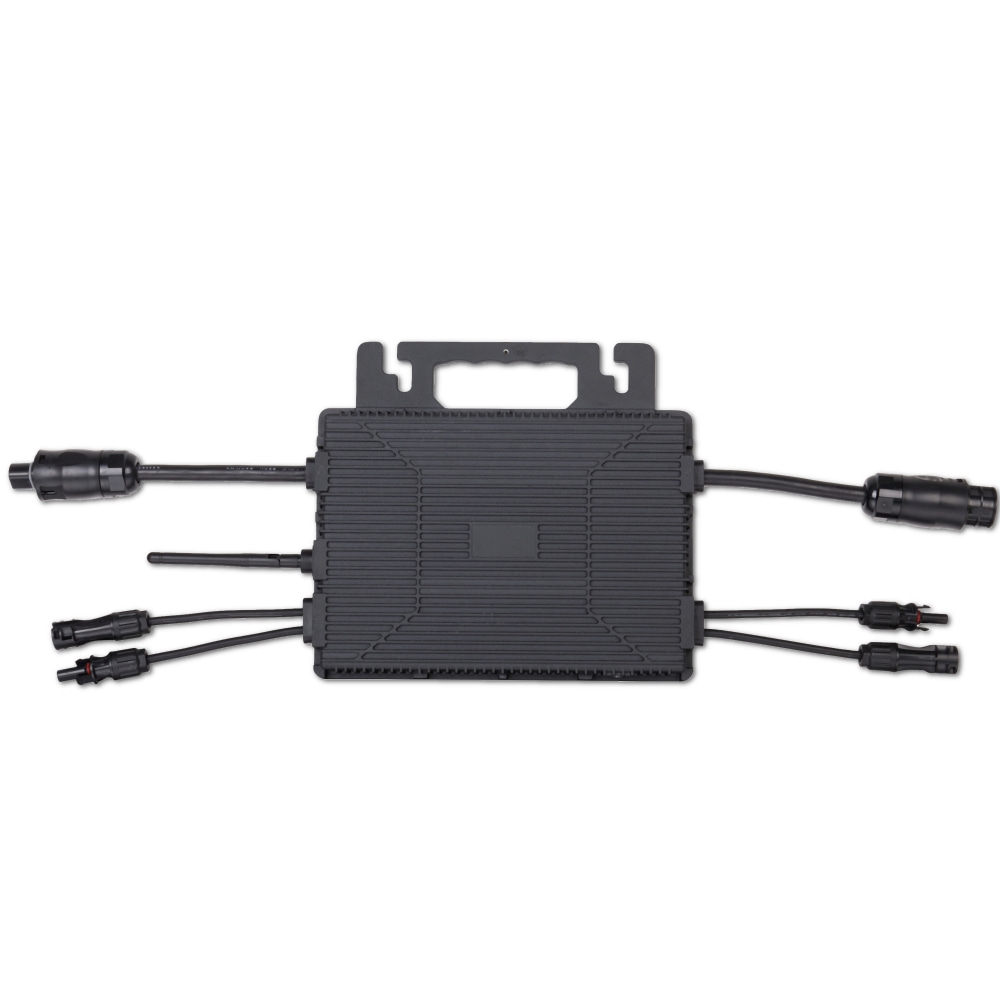

Our gallery
Product Details
Different energy meet the vast majority of scenarios. We provide on-site installation and usage guidance services, making it easy for you to buy and use.
Product Introduction
If you have any questions during the browsing process, please feel free to contact us and communicate with us at any time.

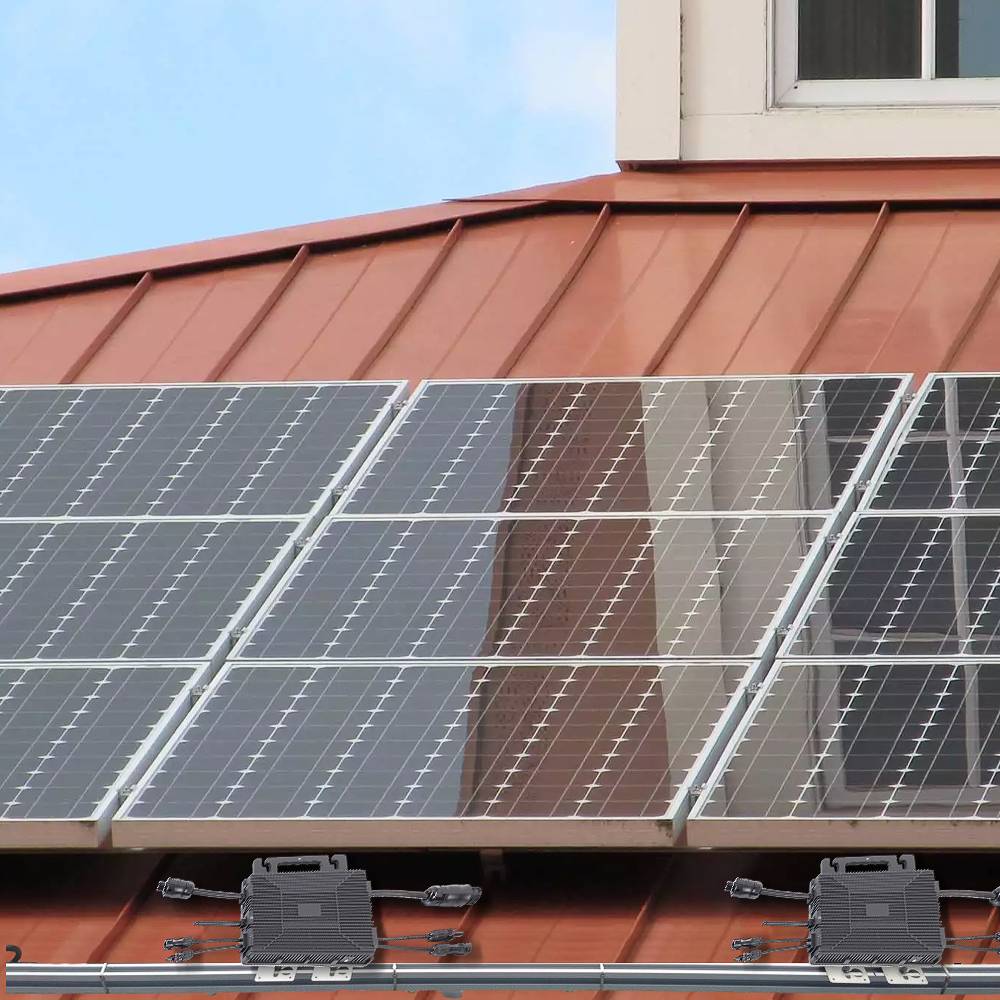

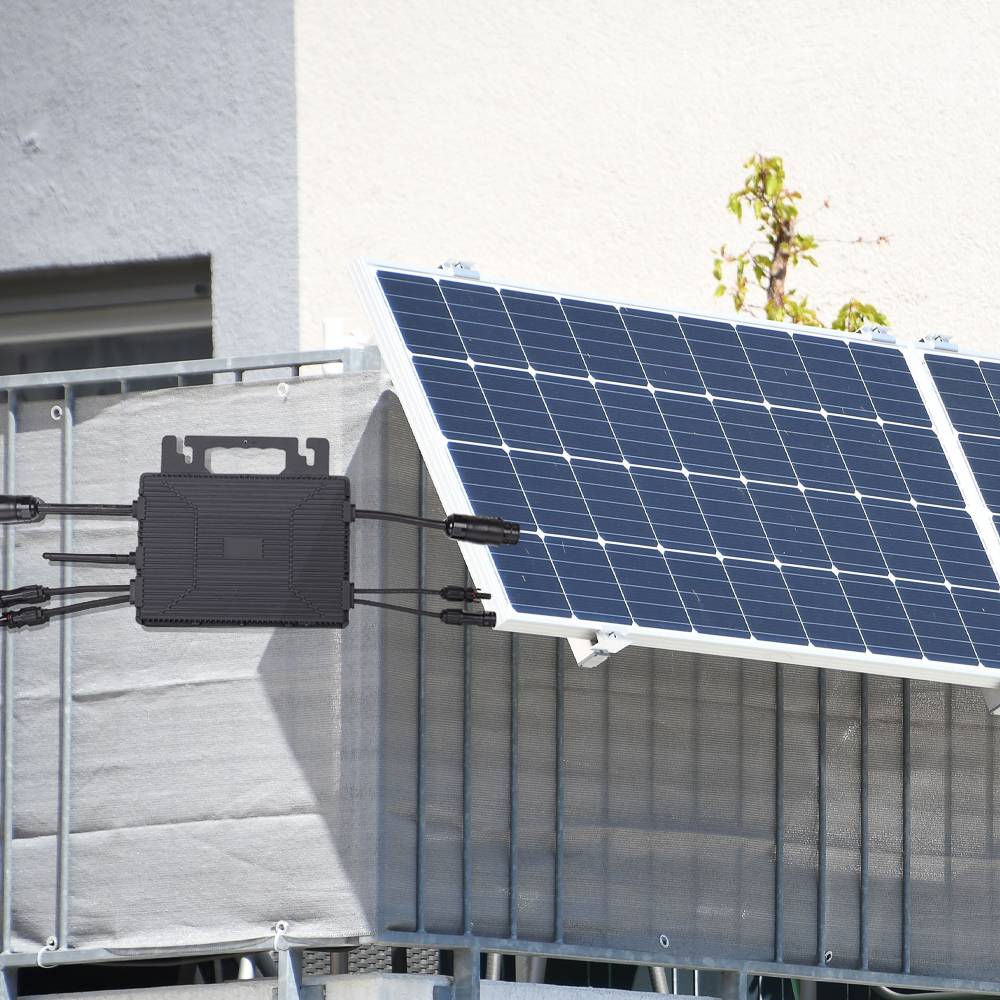

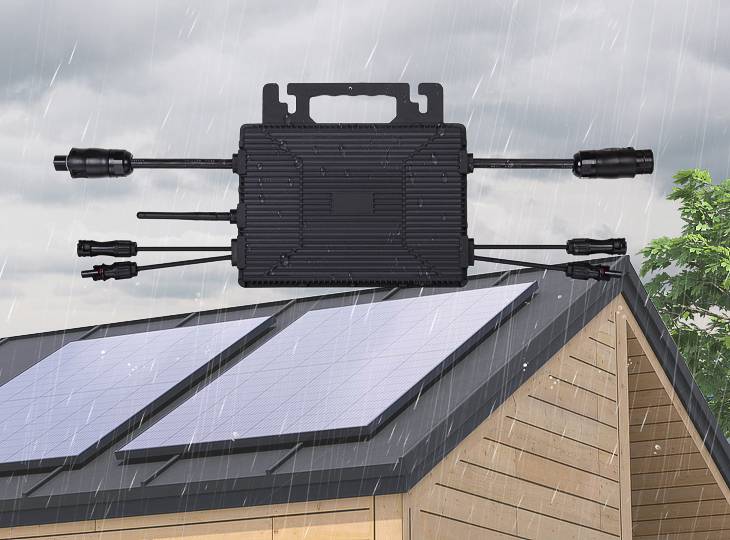

IP67 Protection Degree
Chisage ESS microinverter is designed with an IP67 protection degree, ensuring excellent resistance to dust and water. It is well-suited for outdoor installations, providing reliable performance even in challenging environments.

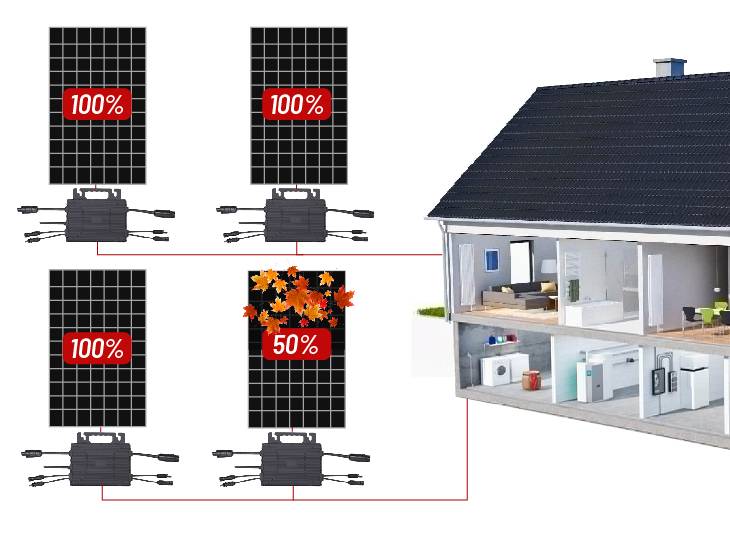

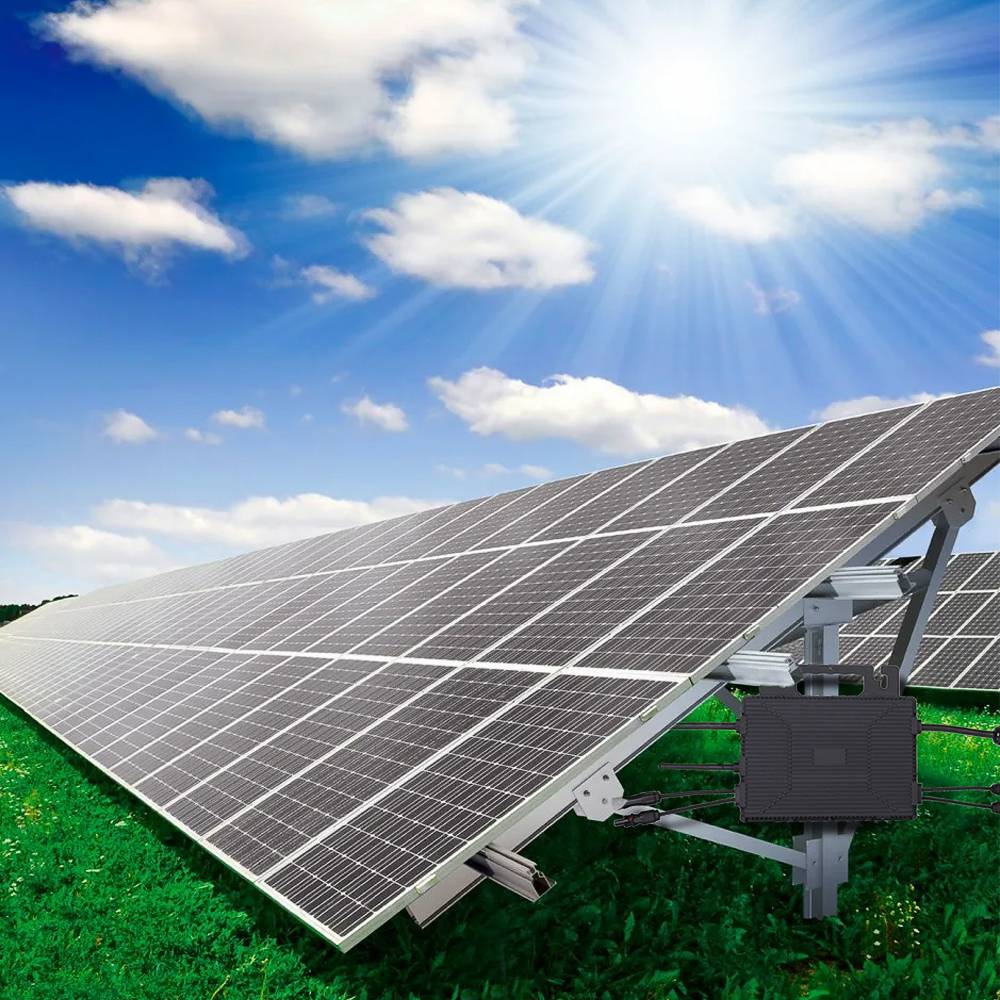

Individual MPPT Tracking
Each microinverter is equipped with independent Maximum Power Point Tracking (MPPT) function that tracks and optimizes the output of the solar panels in real time to maximize power generation efficiency.
